Center Pivot Irrigation System

Product Introduction

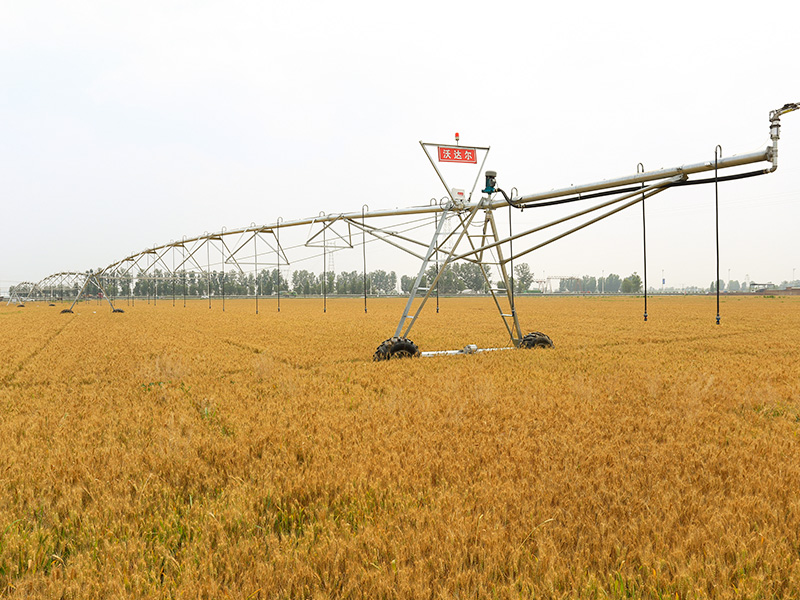

The center pivot sprinkler, also known as the hour hand sprinkler, is a large sprinkler that supports a pipeline with a nozzle on an automatic walking bracket and rotates around a central point equipped with a water supply system while spraying water.

Product Features

Compared with other irrigation methods, it is sturdy, durable, easy to manage, evenly irrigated, and saves a lot of energy and labor.

Compared with large translation machines, the land utilization rate is 78%, the investment and management costs are lower, the supporting facilities are simple, and the irrigation cycle is shorterShort time.

This sprinkler irrigation equipment can apply pesticides, fertilizers, herbicides, etc., reducing the amount of application (about 50%) and improving its effectiveness, reducing the amount of work, and has a significant effect on precision agriculture irrigation.

Equipment length

Individual span lengths of 50 meters, 56 meters, and 62 meters; The Clearance length can be selected from 6 meters, 12 meters, 18 meters, and 24 meters; Optional tail gun installation. Utilize different quantities and lengths of Span, Overhang, and tailguns to achieve the irrigation radius required by the customer. The device can reach a length of 800 meters and irrigate 3000 acres of land in a single operation.

Cross body parameters

Pipeline diameters of 168 and 219 millimeters; Spray nozzle spacing of 1.5 meters and 3 meters; Through heights of 2.9 meters and 4.6 meters.

Power and Water Source

Power supply method: buried cable or generator set; Water supply method: secondary water lifting through buried pipelines or water storage tanks.

Wodar's relative advantage

Wide truss angles improve wind resistance

Reduce stress concentration and improve work strength

J-type tube wedge seals provide superior sealing capabilities.

Its climbing ability is 10% higher than other products with similar configurations.

The interbody ball-and-socket flexible connection allows for flexible movement across complex terrain without generating stress.

Wodar has over 50 experienced technical engineers who provide lifetime after-sales service to a wide range of users.
